Guide To DELUN Abrasive
DELUN abrasive include complete type and specification cutting disc,grinding,disc,flap wheel and wire brush,saw blade etc.

What Is Flap Disc?

A flap is an abrasive product designed for right angle grinding machine applications consisting of overlapping abrasive "flaps" that are radially glued to the backplate. Flaps discs became popular for benefits such as rapid demolding and the ability to perform grinding, mixing, and finishing in one product.

Many flap discs remove up to many times the material with fewer workpiece grooves than standard grinding wheels. They are also easier to control, resulting in better workpiece quality and fewer replacements. There is no need to replace grinding wheels, and the user experiences less downtime, less varnishing, loading and workpiece discoloration. In addition to their ease of use, flap discs are also the operator's first choice because they generate lower vibration and noise levels.

Working Theory Of Flap Disc

The meta and wood are polished and rusted by an Angle grinder equipped with Flap disc, It should be noted that water should not be added when using
Flap Disc Shape
Flap discs are available in two shapes: T27 flat-shape or T29 conical .

Type 27

Type 27 high-density flap discs have the same straight profile associated with flat flap discs, and they contain added thickness. They are ideal for grinding at angles between 0 and 15 degrees. They conform easily to irregular surfaces and provide smooth blending, grinding and finishing on flat surfaces as well.

Type 29

Type 29 high-density flap discs have an angled profile associated with conical flap discs. They are ideal for grinding at angles between 15 and 35 degrees. Their density and angled design make them ideal for operators looking for aggressive stock removal while also conforming to irregular workpiece surfaces.
Flap Disc Material

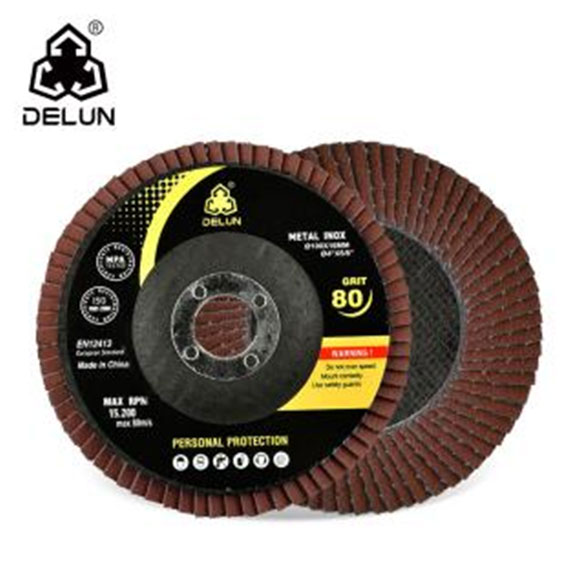

Aluminum Oxide

The leaf is brown in color. A disc made from aluminum oxide has a hard, durable grain and a strong initial cut rate, and it offers fast stock removal and consistent performance. Aluminum oxide is ideal for workpieces made of materials such as steel, as well as for all-purpose use.

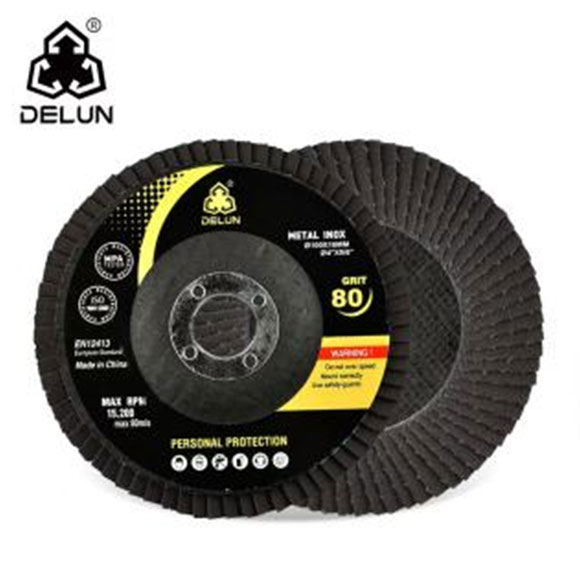

Calcined Aluminum Oxide

The leaf is black in color. The Calcined Aluminum Oxide Flap Disc is used for shaping, grinding and sanding metal. It provides better surface quality and produces finer grinding patterns. It is ideal for materials such as steel and stainless Steel.


Zirconium Oxide

The leaf is blue in color. A flap disc made from 100% zirconia alumina allows for aggressive stock removal and high-performance edge grinding. Zirconia alumina is self-sharpening, and it holds up exceptionally well under high temperatures and pressures. With proper use and maintenance, it provides a rapid cut and long lifespan.

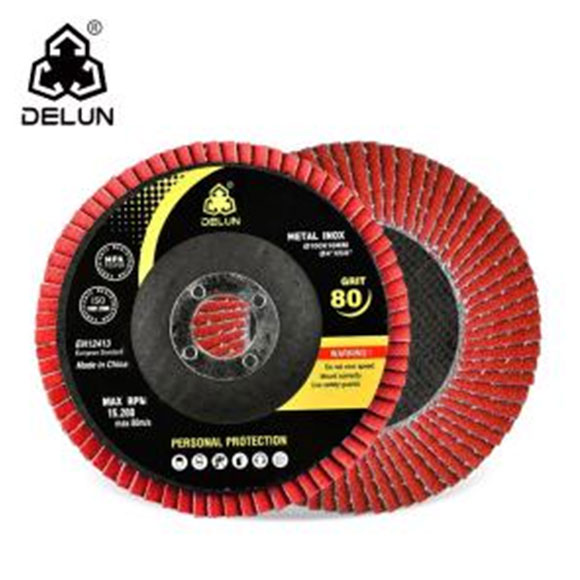

Ceramic Oxide

The leaf is red in color. Ceramic is your best bet when looking for a Flap dsic with maximum performance. It works on standard steel, tool steel, armor steel, titanium, inconel, high nickel alloy, stainless steel and aluminum workpieces. It works very well on hard to grind metals.

Flap Disc Applies To The Field
Construction-of-engineering Construction Of Engineering
Common-iron-work-piece Common Iron Work Piece
Pipeline-development Pipeline Development
Shipbuilding-industry Shipbuilding Industry

What About The Packing

We have a wide selection of packaging, can match!
Under normal circumstances, we default to white inner box or brown inner box, plus brown paper outer box, 10 pcs per shrinking.
If you buy the original brand, we support color packaging.
At the same time, we also support custom branding, to print your brand on the packaging.
All packaging is reinforced to better protect the product from damage in transit.
